Oscillating Drilling Tool Holders - Model 70MRDA

                                                Model BBMRDA, Multiple Spindle

Heat, long string chips, and drill breakage are all factors which

must be considered in drilling operations. The oscillating action of the

deep-hole drilling tool breaks the chips into fine granules, eliminating the chip

problem and affording longer drill life through cooler running. In addition,

finer finishes, closer tolerances, and better concentricity are maintained.

The oscillating motion is derived from a flutter or wave cam built into the tool.

It oscillates .006", three times per revolution of the drill. The tool is driven by

the drill speeder spline shaft.

In order to cut freely, a drill must run at the highest surface speed possible

without burning the drill. If the spindle speed of the job is not high enough, the

revolving type tool is used to increase sfm. By revolving the drill in the

opposite direction from the spindle, it is possible to attain improvement in

concentricity. It will also afford faster cycle time and longer drill life.

Variations in drill speed can be obtained by utilizing the various gear ratios

available on the drill speeder drive of the machine.

Four sizes of Boyar-Schultz Oscillating Drilling Tools are available.

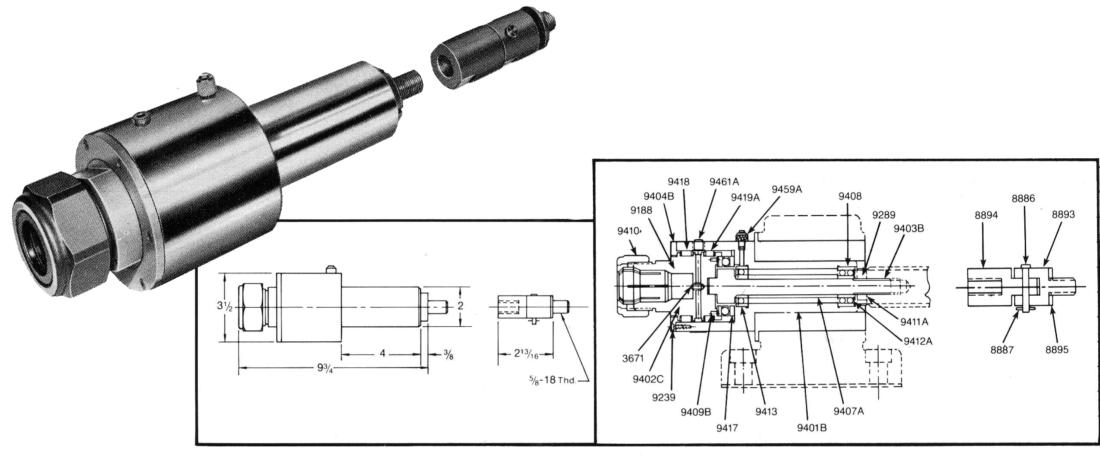

Model 70MRDA Ordering Number 9400B                                          Specifications Type Revolving Screw Machine Capacity 1-1/4 and larger Rise .006" Oscillations Per Revolution 6 Collet* Erickson #400 Drill Capacity 3/32 to 1.0 *Collets not furnished with tool Holders                                 Replacement Parts Holder Screw 3671 Shear Pin 8886 Cotter Pin 8887 Driver 8893 Coupling 8894 Spacer Washer 8895 Set Screw (4 Reqd.) 9188 Cover Screw (6 Reqd.) 9239 Lock Nut Screw 9289 Body 9401B Tool Holder 9402C Drive Shaft 9403B Retaining Cover 9404B Bearing Spacer 9407A Ball Bearing 9408 Bearing Retaining Pin (2 Reqd.) 9409B Collet Nosepiece 9410 Bearing Lock Nut 9411A Bearing Washer 9412A Ball Bearing 9413 Cam Bearing 9417 Needle Roller (43 Reqd.) 9418 Needle Roller (43 Reqd.) 9419A Oil Cup 9459A Pipe Plug 9461A Other Sizes Available Model 9420B 8975 Type Non-Revolving Revolving Machine Size 1-1/4 & larger 7/16 & 9/16 Capacity 15/32 - 1.0 1/64 - 1/4 Model BBMRDA Ordering Number 9440B                                       Specifications Type Revolving Screw Machine Capacity 9/16 and larger Rise .006" Oscillations Per Revolution 6 Collet* Erickson #100 Drill Capacity 3/64 to 9/16 *Collets not furnished with tool Holders                                  Replacement Parts Collar Lock Screw (4 Reqd.) 1210 Holder Screw 4491 Driver 8884 Coupling 8885 Shear Pin 8886 Cotter Pin 8887 Spacer Washer 8888 Ball Bearing (2 Reqd.) 9106 Cover Screw (6 Reqd.) 9239 Collet Nosepiece 9246 Lock Nut Screw 9289 Body 9441B Tool Holder 9442A Bearing Sleeve 9444 Drive Shaft 9445A Retaining Cover 9446A Coolant Intake 9447 Ball Bearing (2 Reqd.) 9451 Ball Bearing (2 Reqd.) 9452 Bearing Spacer 9453A Bearing Lock Nut 9454A Retaining Pin (2 Reqd.) 9455 Spring (6 Reqd.) 9456 Bearing Washer 9457A "0" Ring (2 Reqd.) 9458 Oil Cup (2 Reqd.) 9459A Tool Holder Collar 9460A Pipe Plug 9461A Cam Bearing 9465A
BOYAR-SCHULTZ SMT
Division of Lester Detterbeck Enterprises Ltd.
Copyright © 2016 BOYAR-SCHULTZ SMT, a division of Lester Detterbeck Enterprises, LTD Website by North Country Website Design_

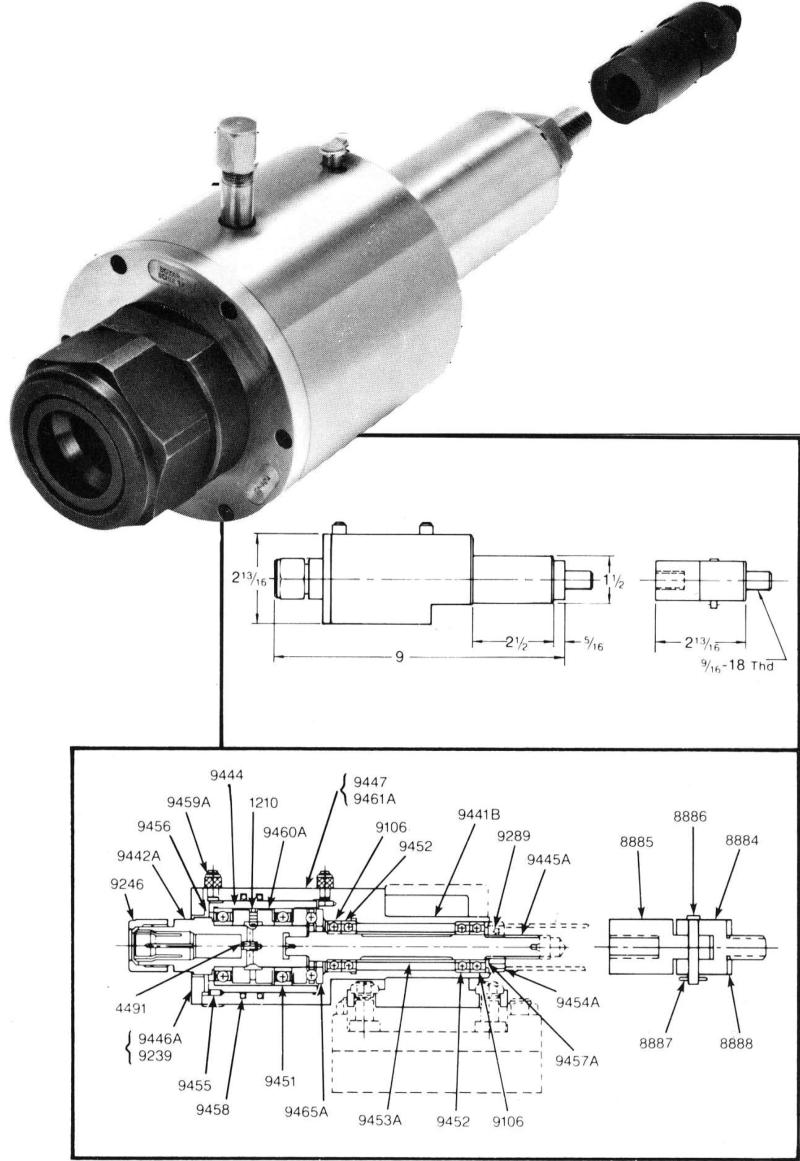

Model BBMRDA Ordering Number 9440B                                       Specifications Type Revolving Screw Machine Capacity 9/16 and larger Rise .006" Oscillations Per Revolution 6 Collet* Erickson #100 Drill Capacity 3/64 to 9/16 *Collets not furnished with tool Holders                                  Replacement Parts Collar Lock Screw (4 Reqd.) 1210 Holder Screw 4491 Driver 8884 Coupling 8885 Shear Pin 8886 Cotter Pin 8887 Spacer Washer 8888 Ball Bearing (2 Reqd.) 9106 Cover Screw (6 Reqd.) 9239 Collet Nosepiece 9246 Lock Nut Screw 9289 Body 9441B Tool Holder 9442A Bearing Sleeve 9444 Drive Shaft 9445A Retaining Cover 9446A Coolant Intake 9447 Ball Bearing (2 Reqd.) 9451 Ball Bearing (2 Reqd.) 9452 Bearing Spacer 9453A Bearing Lock Nut 9454A Retaining Pin (2 Reqd.) 9455 Spring (6 Reqd.) 9456 Bearing Washer 9457A "0" Ring (2 Reqd.) 9458 Oil Cup (2 Reqd.) 9459A Tool Holder Collar 9460A Pipe Plug 9461A Cam Bearing 9465A

Oscillating Drilling Tool Holders -

Model 70MRDA

Model BBMRDA, Multiple Spindle

Heat, long string chips, and drill

breakage are all factors which

must be considered in drilling

operations. The oscillating action of

the deep-hole drilling tool breaks the

chips into fine granules, eliminating the

chip problem and affording longer drill

life through cooler running. In addition,

finer finishes, closer tolerances, and

better concentricity are maintained.

The oscillating motion is derived from a flutter or wave cam

built into the tool. It oscillates .006", three times per

revolution of the drill. The tool is driven by the drill speeder

spline shaft.

In order to cut freely, a drill must run at the highest surface

speed possible without burning the drill. If the spindle speed

of the job is not high enough, the revolving type tool is used to

increase sfm. By revolving the drill in the opposite direction

from the spindle, it is possible to attain improvement in

concentricity. It will also afford faster cycle time and longer

drill life.

Variations in drill speed can be obtained by utilizing the

various gear ratios available on the drill speeder drive of the

machine.

Four sizes of Boyar-Schultz Oscillating Drilling Tools are

available.

Model 70MRDA Ordering Number 9400B                                          Specifications Type Revolving Screw Machine Capacity 1-1/4 and larger Rise .006" Oscillations Per Revolution 6 Collet* Erickson #400 Drill Capacity 3/32 to 1.0 *Collets not furnished with tool Holders                                 Replacement Parts Holder Screw 3671 Shear Pin 8886 Cotter Pin 8887 Driver 8893 Coupling 8894 Spacer Washer 8895 Set Screw (4 Reqd.) 9188 Cover Screw (6 Reqd.) 9239 Lock Nut Screw 9289 Body 9401B Tool Holder 9402C Drive Shaft 9403B Retaining Cover 9404B Bearing Spacer 9407A Ball Bearing 9408 Bearing Retaining Pin (2 Reqd.) 9409B Collet Nosepiece 9410 Bearing Lock Nut 9411A Bearing Washer 9412A Ball Bearing 9413 Cam Bearing 9417 Needle Roller (43 Reqd.) 9418 Needle Roller (43 Reqd.) 9419A Oil Cup 9459A Pipe Plug 9461A Other Sizes Available Model 9420B 8975 Type Non-Revolving Revolving Machine Size 1-1/4 & larger 7/16 & 9/16 Capacity 15/32 - 1.0 1/64 - 1/4
