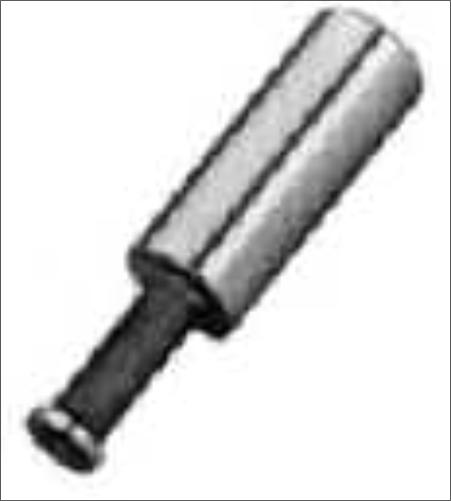

Recessing Tool Blank

Made of hardened high-speed steel, recessing tools are used to cut a groove in the I.D. or to recess the back

end of a part before it is cut off. Sizes are available to fit all recessing tool holders. They are adaptable to

single-and multiple-spindle screw machines. CNC lathes and engine lathes.

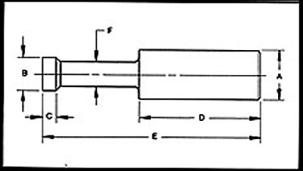

Ordering Number 105185 105186 105187 105188 105189 105190 Dimensions A 1/4 1/4 1/4 5/16 5/16 5/16 B .140" .190" .240" .220" .260" .300" C .030" .030" .030" .040" .040" .040" D 9/16 9/16 9/16 3/4 3/4 3/4 E 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 F .080" .110" .150" .150" .180" 0.21 Ordering Number 105191 105192 105193 105194 105195 105196 Dimensions A 3/8 3/8 3/8 1/2 1/2 1/2 B .240" .300" .360" .270" .330" .400" C .045" .045" .045" .050" .050" .050" D 15/16 15/16 15/16 1-1/4 1-1/14 1-1/4 E 1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 F .180" .220" .250" .200" .250" .300"
BOYAR-SCHULTZ SMT
Division of Lester Detterbeck Enterprises Ltd.
Copyright © 2016 BOYAR-SCHULTZ SMT, a division of Lester Detterbeck Enterprises, LTD Website by North Country Website Design.  _

Recessing Tool Blank

Made of hardened high-speed steel, recessing

tools are used to cut a groove in the I.D. or to

recess the back end of a part before it is cut off.

Sizes are available to fit all recessing tool

holders. They are adaptable to single-and

multiple-spindle screw machines. CNC lathes and engine

lathes.

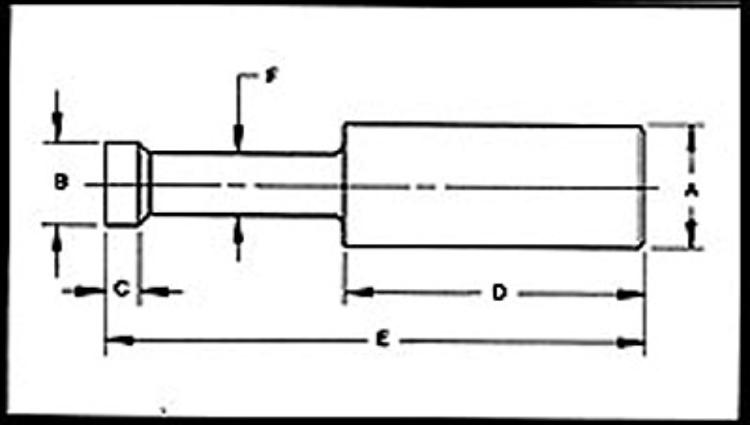

Ordering Number 105185 105186 105187 105188 105189 105190 Dimensions A 1/4 1/4 1/4 5/16 5/16 5/16 B .140" .190" .240" .220" .260" .300" C .030" .030" .030" .040" .040" .040" D 9/16 9/16 9/16 3/4 3/4 3/4 E 7/8 1 1-1/8 1-1/4 1-3/8 1-1/2 F .080" .110" .150" .150" .180" 0.21 Ordering Number 105191 105192 105193 105194 105195 105196 Dimensions A 3/8 3/8 3/8 1/2 1/2 1/2 B .240" .300" .360" .270" .330" .400" C .045" .045" .045" .050" .050" .050" D 15/16 15/16 15/16 1-1/4 1-1/14 1-1/4 E 1-1/2 1-5/8 1-3/4 1-7/8 2 2-1/4 F .180" .220" .250" .200" .250" .300"
